It's been quite a while since I last posted anything interesting, so here's a battery pack holder I designed and made for my Tensation this week...

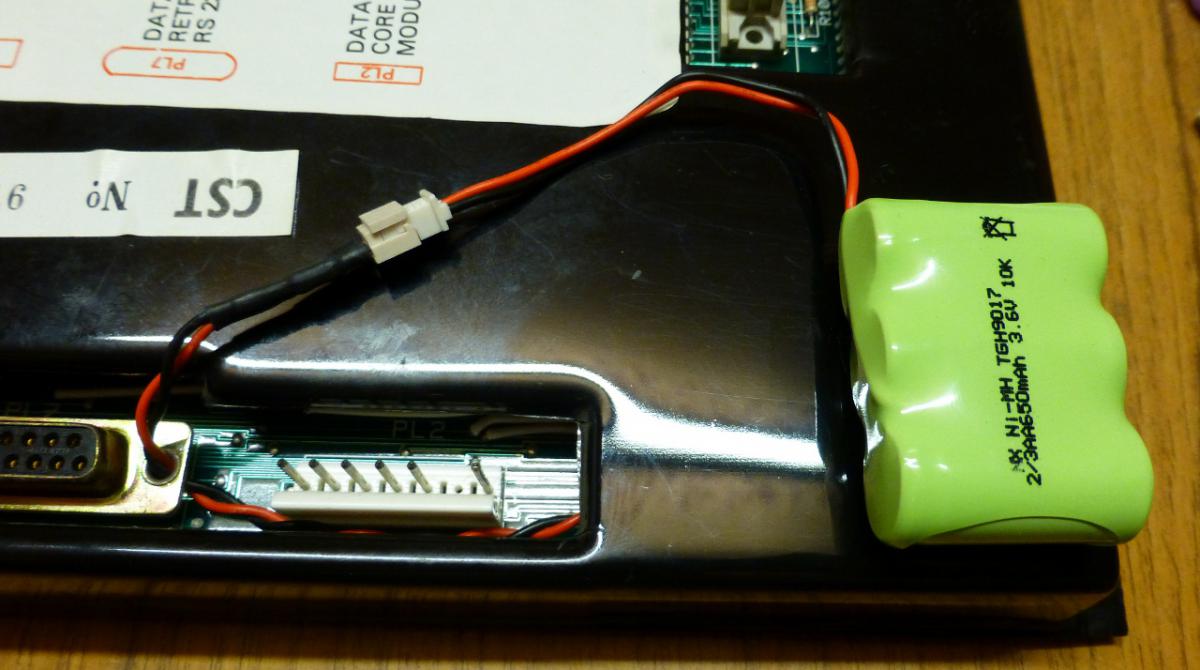

Battery originally mounted with double sided tape but fell off :headache:

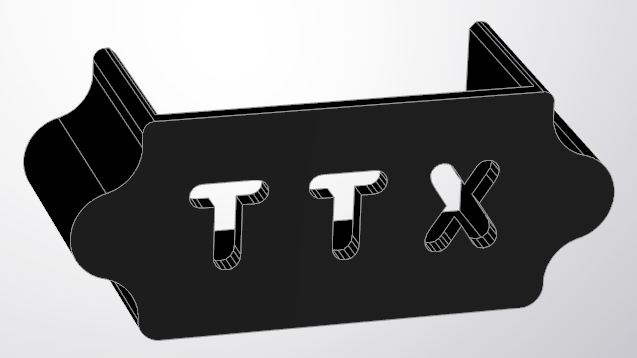

CAD model for new holder

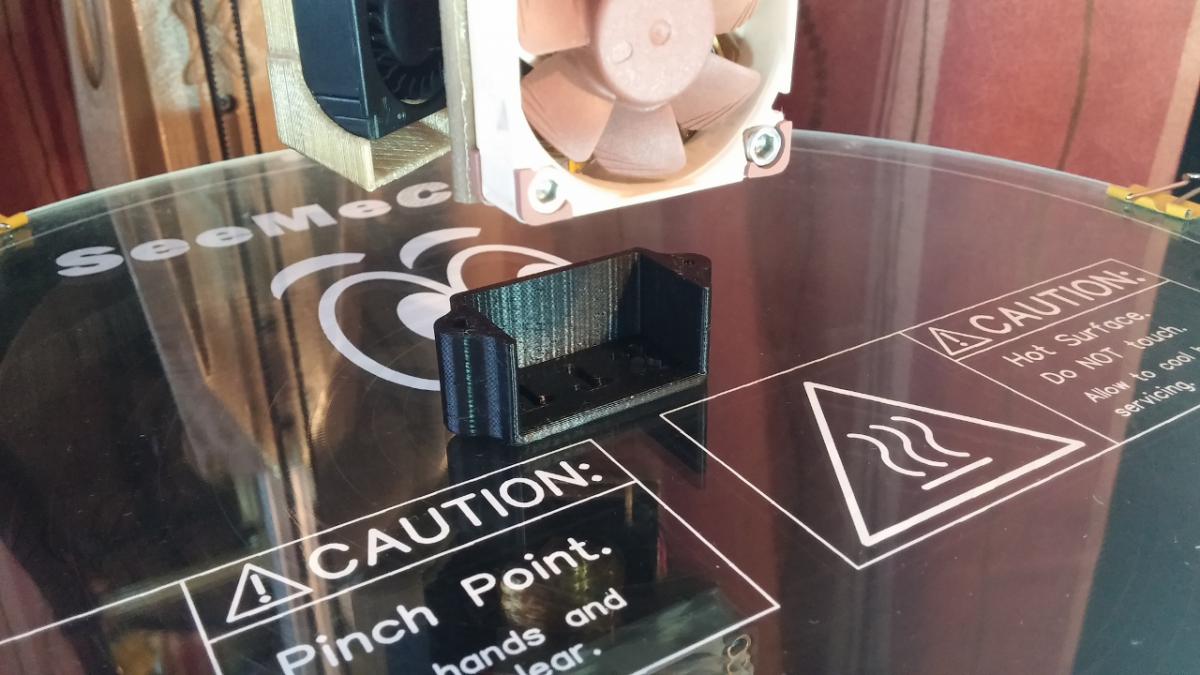

3D printed! :D

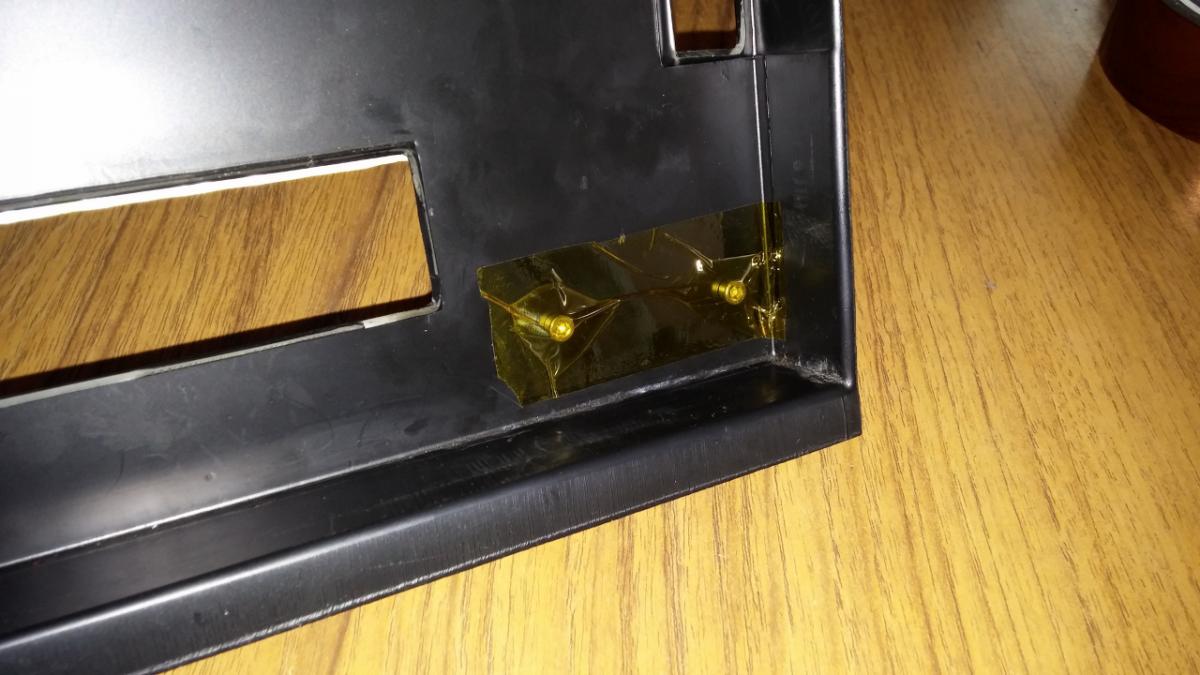

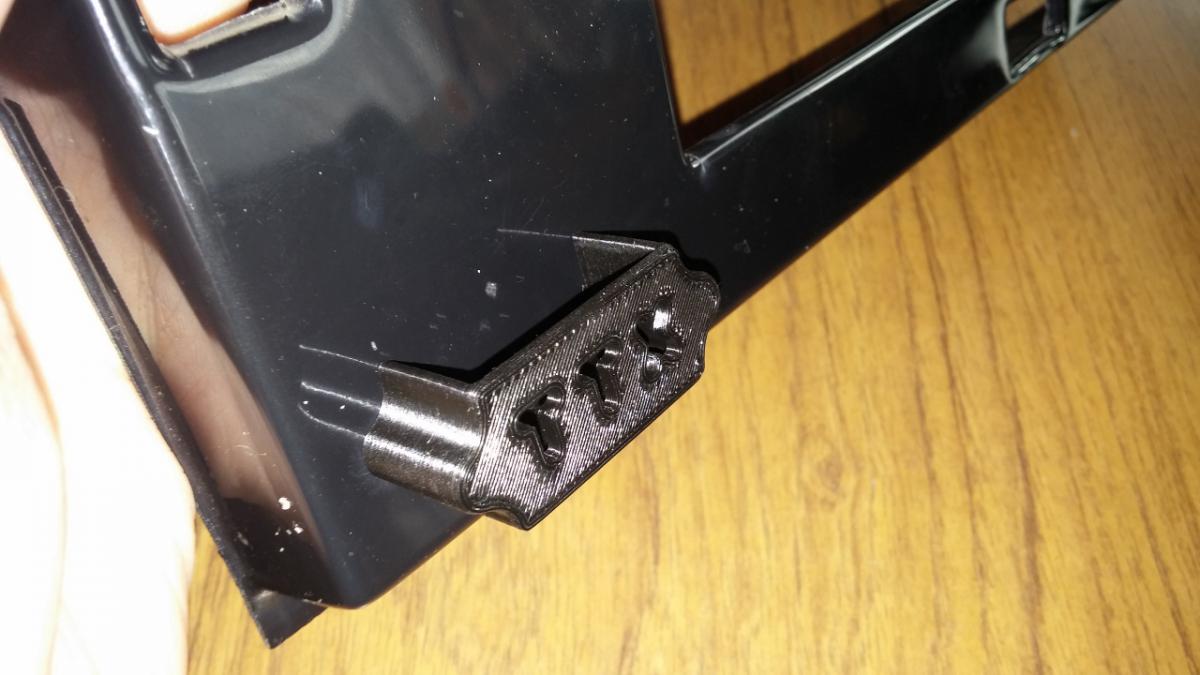

Attached to MPU case, screw heads insulated

Fitted.jpg Screws.jpg

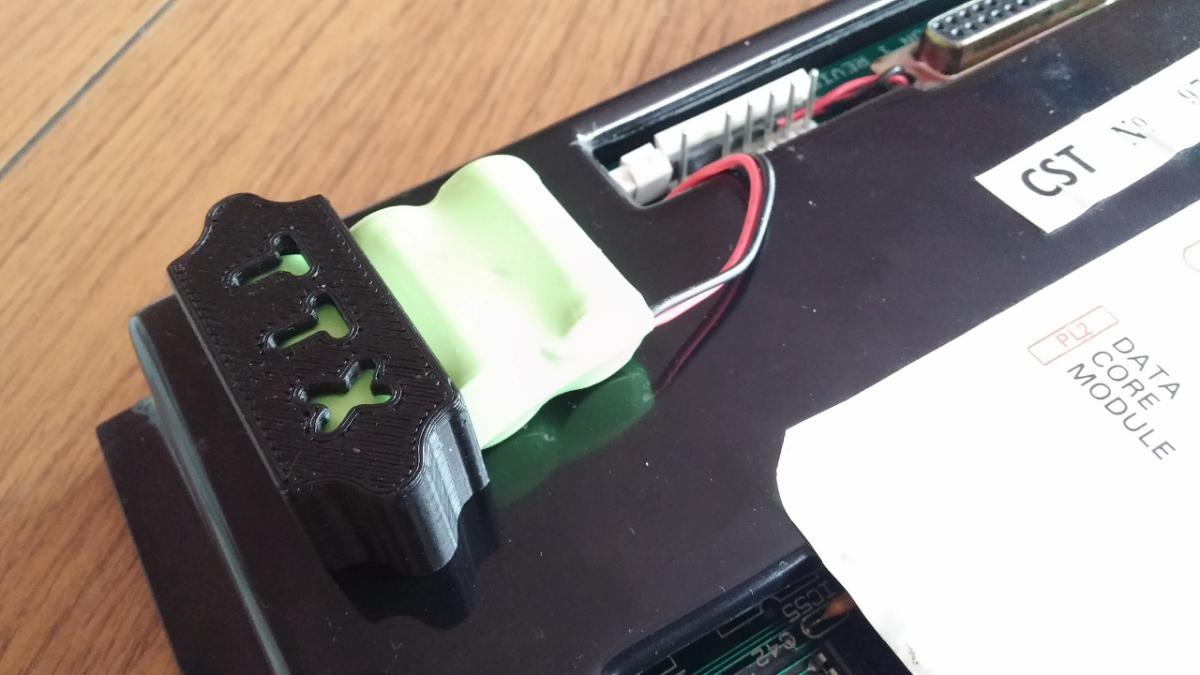

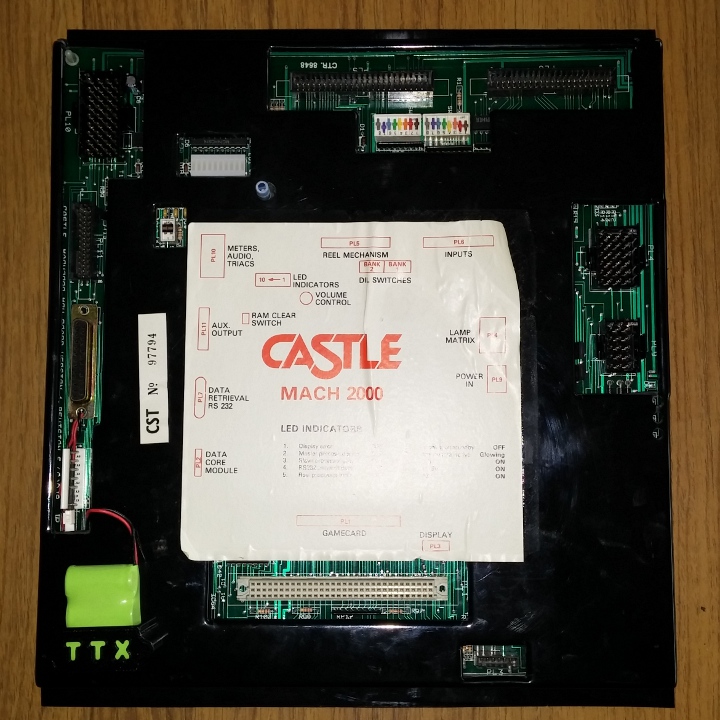

All done! :)

Battery.jpg Done.jpg
