MDM "The Mob" MPU4 - Erratic Display

The Mob MPU4 MDM Fault Erratic Display Display Fault

  • Please log in to reply
7 replies to this topic

#1 madstiv

madstiv

    Newbie

  • New Members
  • 3 posts

Posted 23 September 2017 - 04:11 PM

Hi Everyone

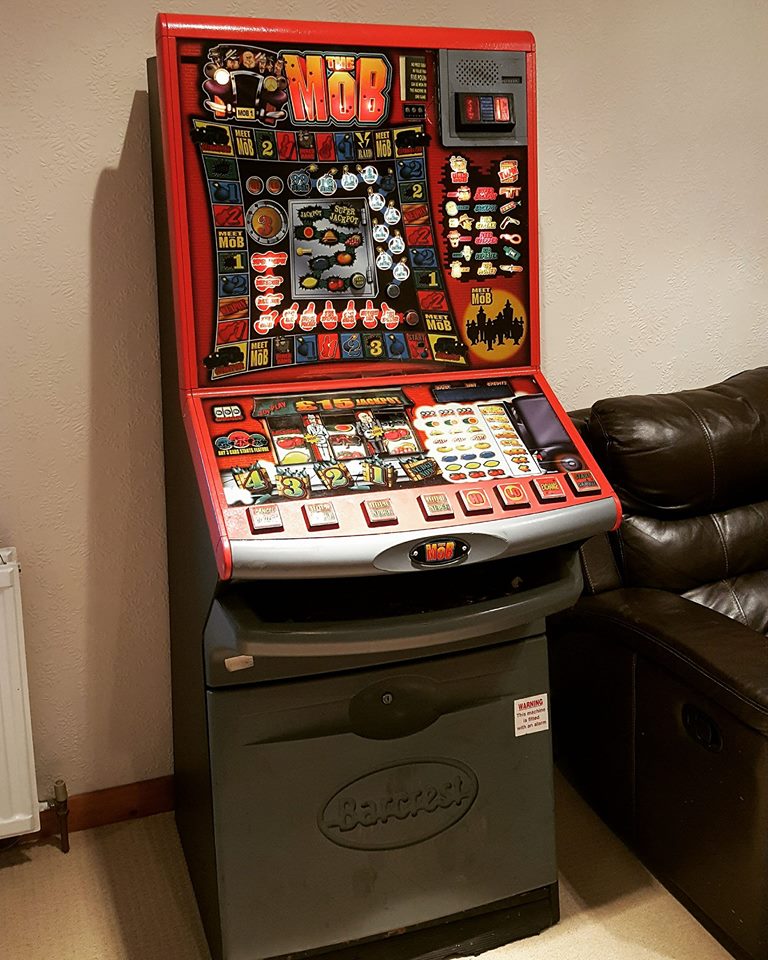

Recently bought The Mob by MDM, and until now it has been faultless.

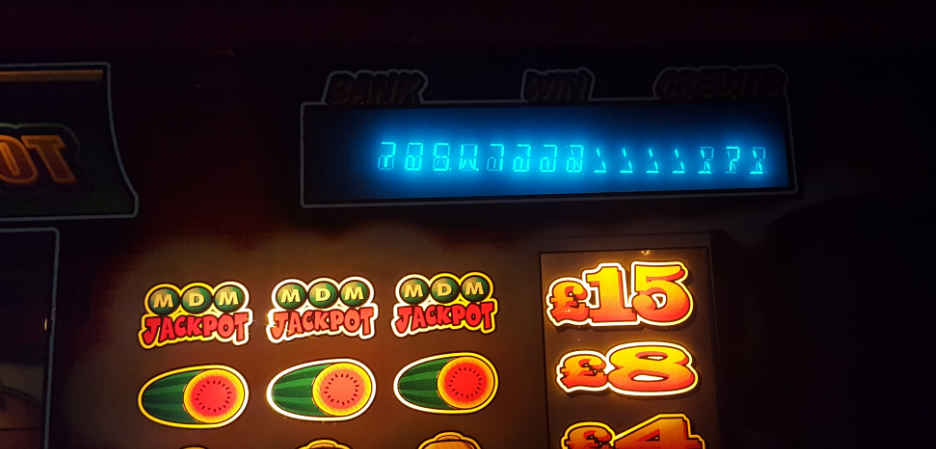

Playing about with it this afternoon though, it has developed a strange fault where the display is showing random characters.





This machine will still play, and payout, just doesn't display properly.

I have traced the cables from the display down to the bottom of the MPU4 board, and both ends are secure.

Looking for some guidance as to what to check next?

Thanks in advance!

Steven

Attached Files



#2 Mavroz

Mavroz

    odd job man...

  • Layout Creator
  • PipPip
  • 747 posts

Posted 24 September 2017 - 03:41 AM

Battery on mpu has leaked.
New mpu required or repair.

#3 madstiv

madstiv

    Newbie

  • New Members
  • 3 posts

Posted 26 September 2017 - 11:08 AM

Battery on mpu has leaked.
New mpu required or repair.



Thanks for the response. Any idea who I could contact about a repair? or, if I source a replacement MPU, is it just a case of unplugging the one that is in it, and plugging in the new one?



#4 Mavroz

Mavroz

    odd job man...

  • Layout Creator
  • PipPip
  • 747 posts

Posted 26 September 2017 - 01:11 PM

Repair, probably yourself.
New board if you don't know much about electronics.
You.need to know if the board is mod2 or mod4.
There are sound chip differences.

#5 richy1976

richy1976

    Part of the furniture

  • Silver Supporters
  • 1803 posts

Donator

Posted 26 September 2017 - 01:47 PM

Be a mod4 that.

#6 madstiv

madstiv

    Newbie

  • New Members
  • 3 posts

Posted 27 September 2017 - 07:42 PM

Yeah it's a Mod 4 board. I have been put in contact with someone who is going to repair mine. I'll let you know how I get on :)



#7 Magz

Magz

    Senior Member

  • Gold Supporters
  • 823 posts

Posted 28 September 2017 - 07:27 PM

Is this emulated? Can't seem to see it in the downloads...



#8 todd1970

todd1970

    The furniture

  • Gold Supporters
  • 6812 posts

Posted 28 September 2017 - 07:41 PM

Is this emulated? Can't seem to see it in the downloads...



http://www.fruit-emu...he-mob-1280-dx/


Mmmmmm...Sandy ive 'ad her ye know. :)
